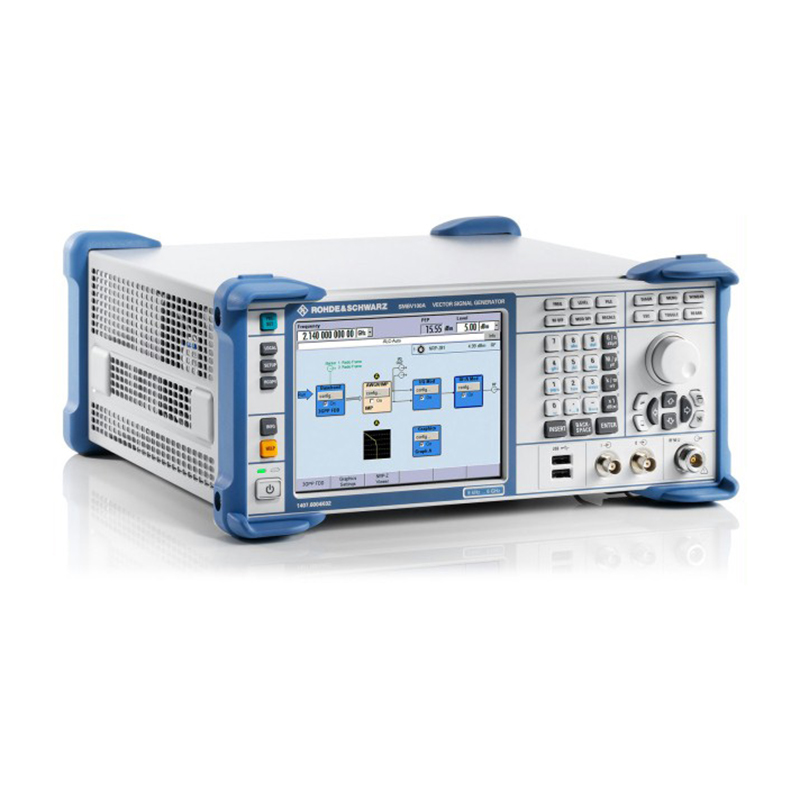

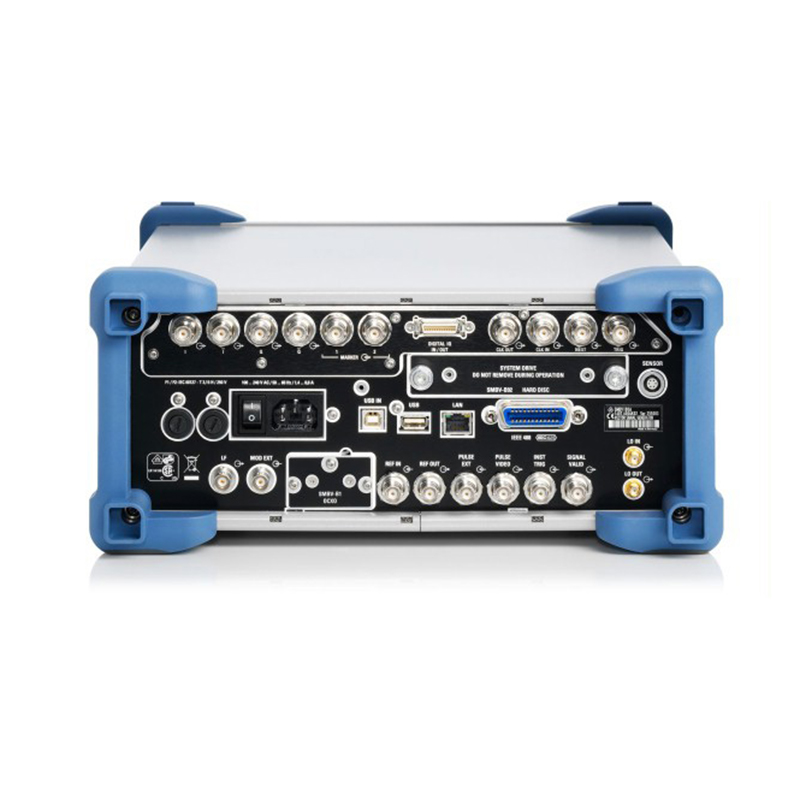

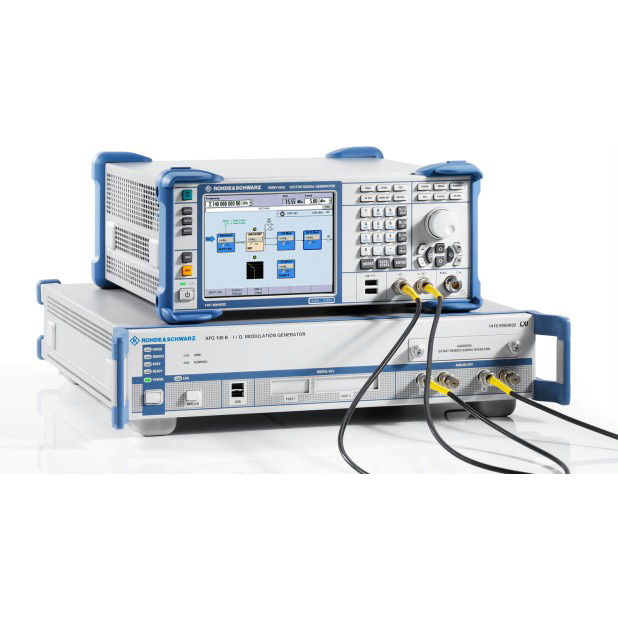

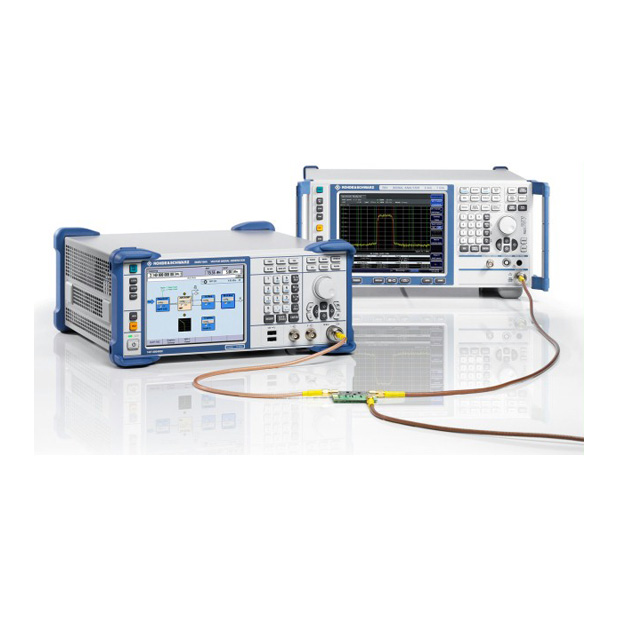

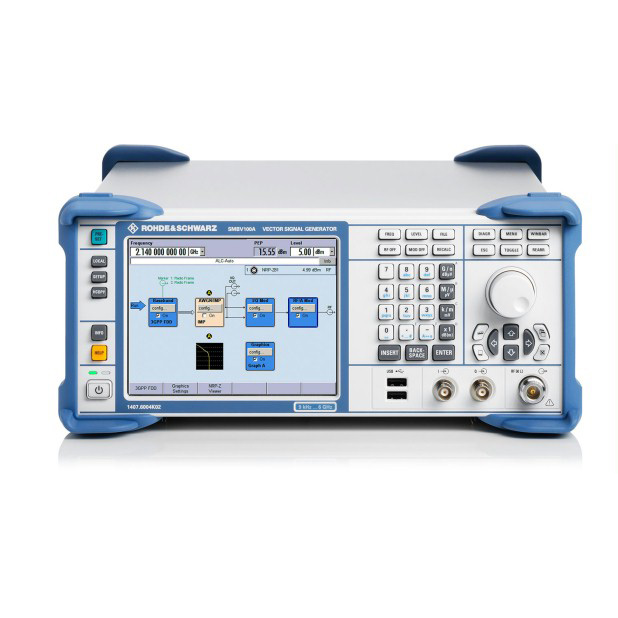

SMBV100A 矢量信号发生器

Item No.: R&S®SMBV100A

主要特点

频率选项介于 9 kHz 至 3.2 GHz/ 6 GHz
具有实时编码器及任意波形发生器的可选基带发生器，有助于最大程度地增加灵活性
可选基带发生器（只带有 ARB）是节约成本的有效替代方案
支持 3GPP LTE FDD 及 TDD、3GPP FDD/HSPA/HSPA+、GSM/EDGE/EDGE Evolution、TD-SCDMA、WLAN、WiMAX™ 以及所有其他重要的数字标准
成熟的 GNSS 模拟器（支持 GPS、Glonass、Galileo、BeiDou 以及 QZSS/SBAS）
适用于经济有效的 GNSS 生产测试仪的特殊组件包
在使用内部基带发生器的情况下，射频带宽最高为 160 MHz
I/Q 调制器，具有 528 MHz 射频带宽
为实现高生产吞吐量而优化
适合航空航天和国防应用
得益于简单维修概念，拥有成本很低

产品介绍
参数型号

主要特点

• 9 kHz 至 3.2 GHz/6 GHz，频段可选
• 基带发生器选件配备了实时编码器和任意波形发生器，极大的提高了灵活性
• 只有 ARB 功能的基带信号发生器——节省成本的方案
• 支持 3GPP LTE FDD/TDD、3GPP FDD/HSPA/HSPA+、GSM/EDGE/EDGE Evolution、TD-SCDMA、WiMAX™ 及其它所有重要的数字标准。
• I/Q 调制器射频带宽高达 528 MHz
• 针对高产量进行了优化
• 适用于航空航天和国防领域

• 简单的维护理念，低拥有成本

能满足未来的应用需求

• 硬件设计能满足未来应用需求
• 射频部分的输出电平高达 6GHz
• 内部信号源可生成的射频信号带宽高达 160MHz 的信号
• I/Q 调制器的最大射频带宽超过 500MHz
• 软件升级使仪表功能保持最新

Specifications

Frequency
Range	R&S®SMBV-B103
	CW mode	9 kHz to 3.2 GHz
	I/Q mode	1 MHz to 3.2 GHz
	R&S®SMBV-B106
	CW mode	9 kHz to 6 GHz
	I/Q mode	1 MHz to 6 GHz
Setting time	SCPI mode, ALC state ON, CW mode	<3 ms
	SCPI mode, ALC state ON, I/Q mode	<5 ms
	SCPI mode, ALC state Table	<2.5 ms
	SCPI mode, ALC state S&H	<7 ms
	List mode	<1 ms

Level
Maximum output power	1 MHz < f = 6 GHz	>+18 dBm (PEP)
Absolute level error	200 kHz < f = 3 GHz	<0.5 dB
Additional level error with ALC OFF, S&H	This mode is used with I/Q modulation and pulse modulation.	<0.25 dB
Output impedance VSWR in 50 Ω system	200 kHz < f = 6 GHz	<1.8
Setting time	SCPI mode, ALC state ON, CW mode	<2.5 ms
	SCPI mode, ALC state ON, I/Q mode	<5 ms
	SCPI mode, ALC state Table	<2.5 ms
	SCPI mode, ALC state S&H	<7 ms
	List mode	<1 ms
Reverse power	1 MHz < f = 1 GHz	50 W
	1 GHz < f = 2 GHz	25 W
	2 GHz < f = 6 GHz	10 W

Spectral purity
Harmonics	f > 1 MHz; CW, level = 8 dBm	<–30 dBc
Nonharmonics	CW, level > –10 dBm, >10 kHz carrier offset, f = 1500 MHz	<–70 dBc (<–84 dBc typ.)
SSB phase noise	20 kHz carrier offset, 1 Hz measurement bandwidth, CW
	f = 100 MHz	<–141 dBc (–147 dBc typ.)
	f = 1 GHz	<–122 dBc (–127 dBc typ.)
	f = 6 GHz	<–106 dBc (–112 dBc typ.)
Wideband noise	attenuator mode AUTO for level > 5 dBm, >10 MHz carrier offset, 1 Hz measurement bandwidth, CW	<–142 dBc

Supported analog modulation modes
Amplitude modulation		standard
Frequency/phase modulation		standard
Maximum FM deviation	f > 3 GHz	16 MHz
Maximum φM	f > 3 GHz	160 rad
Pulse modulation		optional, with R&S®SMBV-K22
On/off ratio		>80 dB
Rise/fall time	10 % to 90 % of RF amplitude	<20 ns, 4 ns (typ.)
Minimum pulse width	using the optional R&S®SMBV-K23 pulse generator	10 ns

I/Q modulation
Supported systems (with additional options)	R&S®SMBV-B10 baseband generator required	GSM/EDGE/EDGE evolution, 3GPP FDD incl. HSPA/HSPA+,TD-SCDMA, CDMA2000®, 1×EV-DO, EUTRA/ LTE, WiMAX IEEE 802.16-2004, Cor1-2005, 802.16e-2005 and 802.16Rev2/D3 , WLAN IEEE 802.11a/b/g/n/ac, NFC A/B/F, Bluetooth®, GPS, Glonass, Galileo, HD Radio™3), XM Radio, Sirius Radio, FM Stereo / RDS, DAB / T-DMB, DVB-H/DVB-T, Tetra Release 2, multicarrier CW
Realtime custom digital modulation	R&S®SMBV-B10 baseband generator required	ASK, FSK, BPSK, QPSK, QPSK 45° offset, OQPSK, p/4-QPSK, p/2-DBPSK, p/4-DQPSK, p/8-D8PSK, 8PSK, 8PSK EDGE, 16QAM, 32QAM, 64QAM, 256QAM, 1024QAM
I/Q modulator bandwidth	internal	60 MHz, 120 MHz or 160 MHz, depending on baseband option
	external	>500 MHz
Maximum waveform length		32 Msample
	with R&S®SMBV-K511 option	256 Msample
	with R&S®SMBV-K512 option	1 Gsample
DAC resolution
ACLR	WCDMA 3GPP FDD, TM 1/64	69 dBc (typ.)
EVM	WCDMA 3GPP FDD, TM 1/64	0.4 % (meas.)
	WLAN IEEE 802.11 ac, 160 MHz	0.44 % (meas.)
	EUTRA/LTE	0.4 % (meas.)

Connectivity
Remote control		IEC/IEEE, Ethernet (LAN), USB
Peripherals		USB 2.0

2) PEP = peak envelope power.

3) HD RadioTM is a proprietary trademark of iBiquity Digital Corp.

SMBV100A 矢量信号发生器

Item No.: R&S®SMBV100A

主要特点

频率选项介于 9 kHz 至 3.2 GHz/ 6 GHz
具有实时编码器及任意波形发生器的可选基带发生器，有助于最大程度地增加灵活性
可选基带发生器（只带有 ARB）是节约成本的有效替代方案
支持 3GPP LTE FDD 及 TDD、3GPP FDD/HSPA/HSPA+、GSM/EDGE/EDGE Evolution、TD-SCDMA、WLAN、WiMAX™ 以及所有其他重要的数字标准
成熟的 GNSS 模拟器（支持 GPS、Glonass、Galileo、BeiDou 以及 QZSS/SBAS）
适用于经济有效的 GNSS 生产测试仪的特殊组件包
在使用内部基带发生器的情况下，射频带宽最高为 160 MHz
I/Q 调制器，具有 528 MHz 射频带宽
为实现高生产吞吐量而优化
适合航空航天和国防应用
得益于简单维修概念，拥有成本很低

产品介绍
参数型号

主要特点

• 简单的维护理念，低拥有成本

能满足未来的应用需求

Specifications

Frequency
Range	R&S®SMBV-B103
	CW mode	9 kHz to 3.2 GHz
	I/Q mode	1 MHz to 3.2 GHz
	R&S®SMBV-B106
	CW mode	9 kHz to 6 GHz
	I/Q mode	1 MHz to 6 GHz
Setting time	SCPI mode, ALC state ON, CW mode	<3 ms
	SCPI mode, ALC state ON, I/Q mode	<5 ms
	SCPI mode, ALC state Table	<2.5 ms
	SCPI mode, ALC state S&H	<7 ms
	List mode	<1 ms

Level
Maximum output power	1 MHz < f = 6 GHz	>+18 dBm (PEP)
Absolute level error	200 kHz < f = 3 GHz	<0.5 dB
Additional level error with ALC OFF, S&H	This mode is used with I/Q modulation and pulse modulation.	<0.25 dB
Output impedance VSWR in 50 Ω system	200 kHz < f = 6 GHz	<1.8
Setting time	SCPI mode, ALC state ON, CW mode	<2.5 ms
	SCPI mode, ALC state ON, I/Q mode	<5 ms
	SCPI mode, ALC state Table	<2.5 ms
	SCPI mode, ALC state S&H	<7 ms
	List mode	<1 ms
Reverse power	1 MHz < f = 1 GHz	50 W
	1 GHz < f = 2 GHz	25 W
	2 GHz < f = 6 GHz	10 W

Spectral purity
Harmonics	f > 1 MHz; CW, level = 8 dBm	<–30 dBc
Nonharmonics	CW, level > –10 dBm, >10 kHz carrier offset, f = 1500 MHz	<–70 dBc (<–84 dBc typ.)
SSB phase noise	20 kHz carrier offset, 1 Hz measurement bandwidth, CW
	f = 100 MHz	<–141 dBc (–147 dBc typ.)
	f = 1 GHz	<–122 dBc (–127 dBc typ.)
	f = 6 GHz	<–106 dBc (–112 dBc typ.)
Wideband noise	attenuator mode AUTO for level > 5 dBm, >10 MHz carrier offset, 1 Hz measurement bandwidth, CW	<–142 dBc

Supported analog modulation modes
Amplitude modulation		standard
Frequency/phase modulation		standard
Maximum FM deviation	f > 3 GHz	16 MHz
Maximum φM	f > 3 GHz	160 rad
Pulse modulation		optional, with R&S®SMBV-K22
On/off ratio		>80 dB
Rise/fall time	10 % to 90 % of RF amplitude	<20 ns, 4 ns (typ.)
Minimum pulse width	using the optional R&S®SMBV-K23 pulse generator	10 ns

I/Q modulation
Supported systems (with additional options)	R&S®SMBV-B10 baseband generator required	GSM/EDGE/EDGE evolution, 3GPP FDD incl. HSPA/HSPA+,TD-SCDMA, CDMA2000®, 1×EV-DO, EUTRA/ LTE, WiMAX IEEE 802.16-2004, Cor1-2005, 802.16e-2005 and 802.16Rev2/D3 , WLAN IEEE 802.11a/b/g/n/ac, NFC A/B/F, Bluetooth®, GPS, Glonass, Galileo, HD Radio™3), XM Radio, Sirius Radio, FM Stereo / RDS, DAB / T-DMB, DVB-H/DVB-T, Tetra Release 2, multicarrier CW
Realtime custom digital modulation	R&S®SMBV-B10 baseband generator required	ASK, FSK, BPSK, QPSK, QPSK 45° offset, OQPSK, p/4-QPSK, p/2-DBPSK, p/4-DQPSK, p/8-D8PSK, 8PSK, 8PSK EDGE, 16QAM, 32QAM, 64QAM, 256QAM, 1024QAM
I/Q modulator bandwidth	internal	60 MHz, 120 MHz or 160 MHz, depending on baseband option
	external	>500 MHz
Maximum waveform length		32 Msample
	with R&S®SMBV-K511 option	256 Msample
	with R&S®SMBV-K512 option	1 Gsample
DAC resolution
ACLR	WCDMA 3GPP FDD, TM 1/64	69 dBc (typ.)
EVM	WCDMA 3GPP FDD, TM 1/64	0.4 % (meas.)
	WLAN IEEE 802.11 ac, 160 MHz	0.44 % (meas.)
	EUTRA/LTE	0.4 % (meas.)

Connectivity
Remote control		IEC/IEEE, Ethernet (LAN), USB
Peripherals		USB 2.0

2) PEP = peak envelope power.

3) HD RadioTM is a proprietary trademark of iBiquity Digital Corp.
